Wood Lathe kit - SWL350

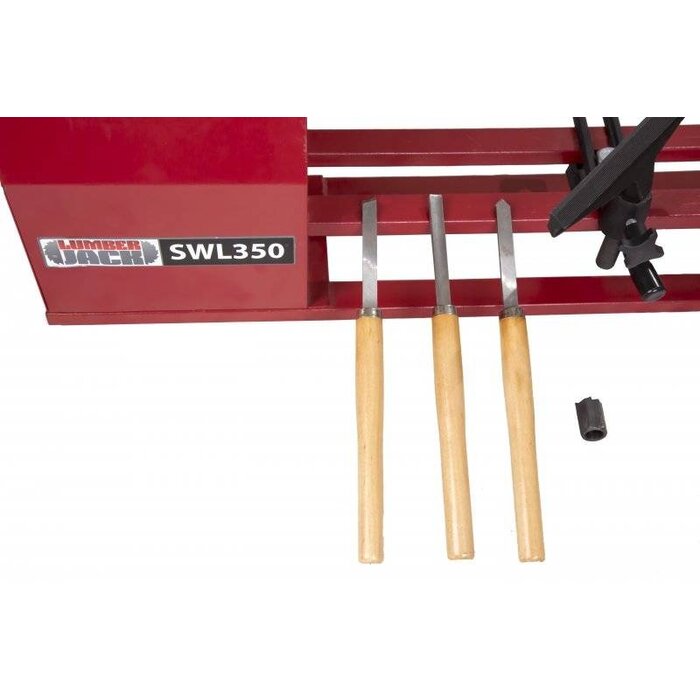

Wood Lathe kit with chisels SWL350
With this versatile, high-quality SWL350 wood lathe starter kit from Lumberjack, you can carry out all turning operations with precision and safety. The lathe can easily be mounted on a workbench with its separate guide frame.

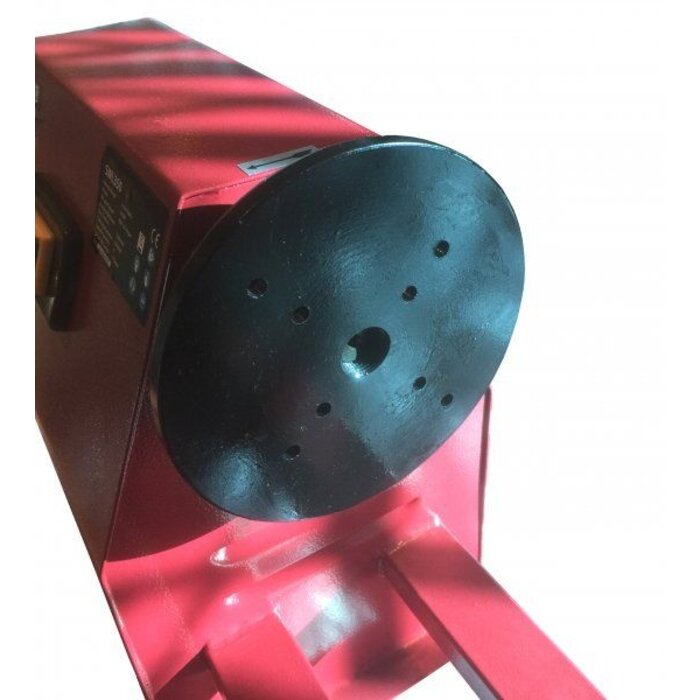

The 375W motor and the durable 4-way adjustable V-belt drive enable an optimum adjustment of the rotation speed. Thanks to the drive and tailstock with parallel spindle, work pieces up to a length of 1,000 mm (1 meter!) can be placed. Work pieces with a diameter of up to 350 mm can be safely mounted on the included front plates.
The stable lathe and the robust guide frame ensure easy handling of the work pieces. A safety switch is also installed in the V-belt housing, which interrupts the flow when the cover flap is opened. Safety first!
Features
- Heavy duty 1/2HP induction motor - gives smooth, reliable performance
- Ideal for both spindle and faceplate turning
- Twin bed bars - For added stability
- Drive centre and live tailstock centre supplied
- Common spindle thread - 3/4 inch x 16 TPI
- Four turning speed options to suit a variety of jobs.
Specifications
- Spindle Speeds - 4
- Speed Range RPM - 850 - 2510
- Distance Between Centres - 1000mm
- Turning Capacity Diameter - 14" (350mm)
- Overall Length - 1200mm
- Extension bed size - 58 x 580mm
- Motor - 370W (1/2HP)
- Spindle Thread -3/4" x 16TPI
- Tailstock Reach - 85mm
- Net Weight - 27 kgs
- Packed Dim. - 900 x 370 x 220
- Total Shipping Weight - 27kg
