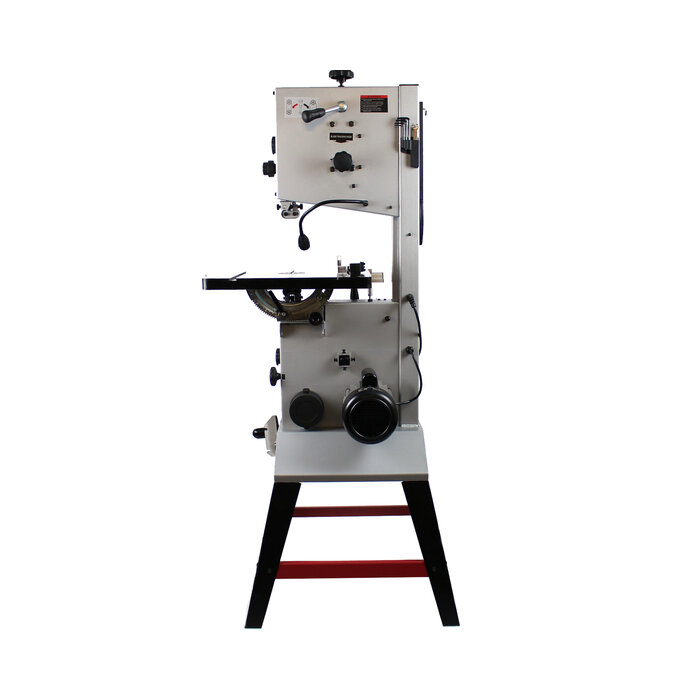

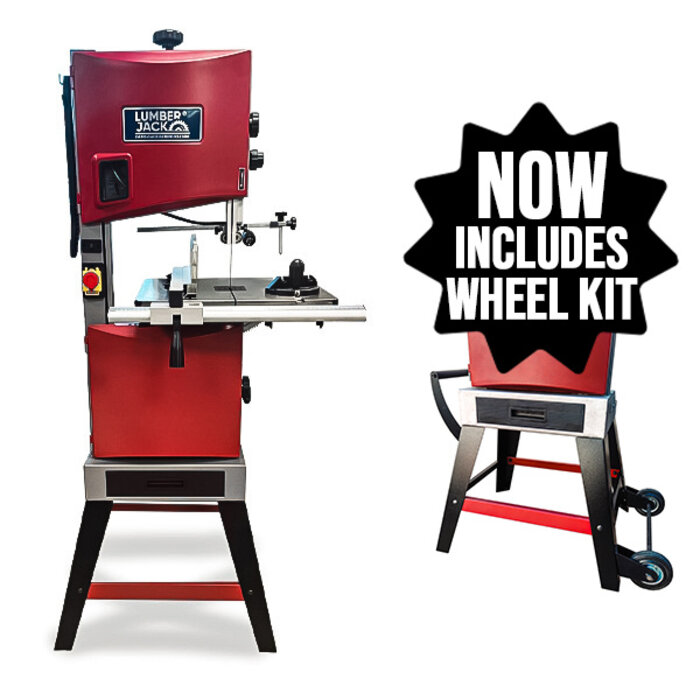

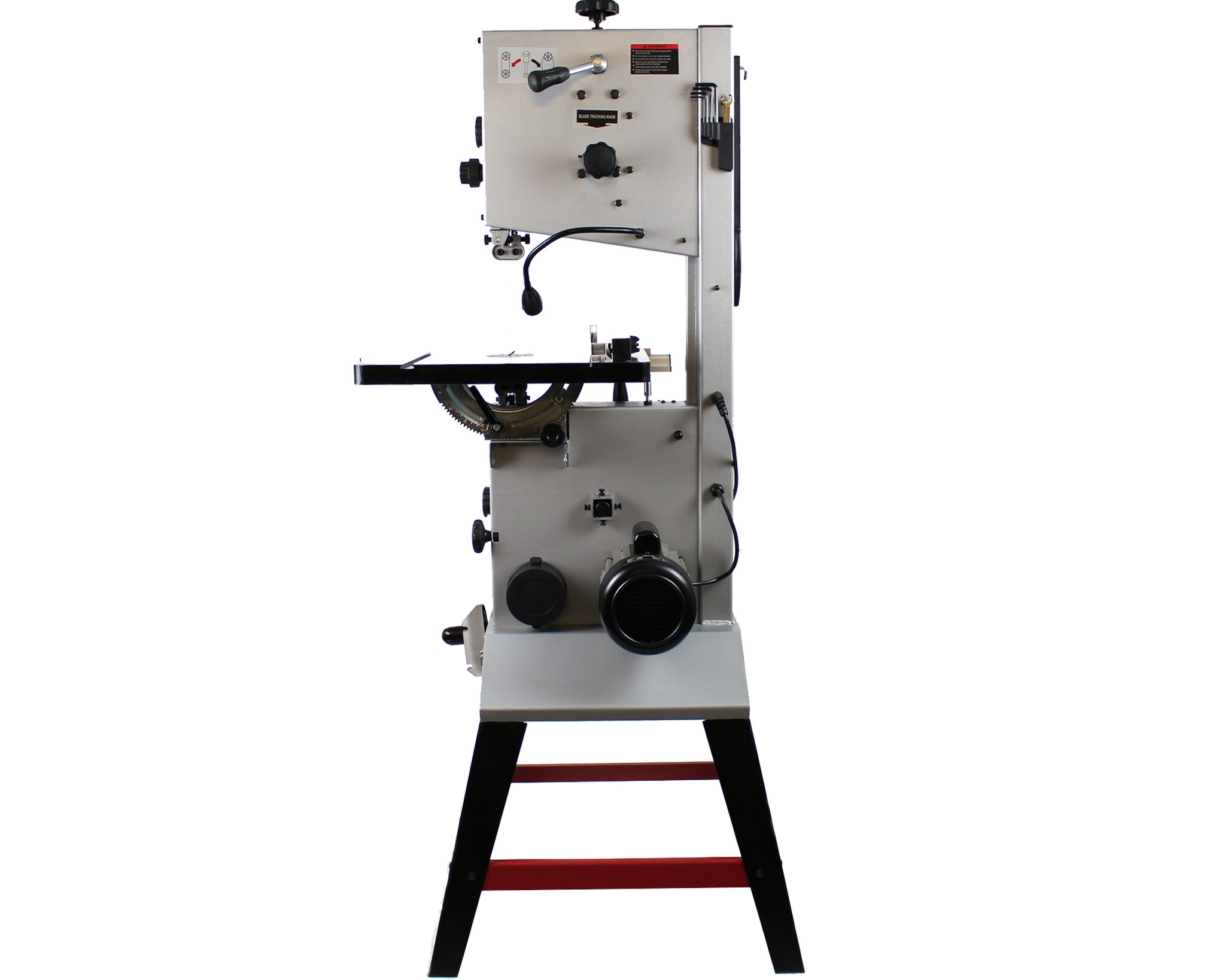

Professional Band Saw 340 mm - BS340

For woodworkers who do not have much space, this Lumberjack BS340 is the ideal band saw.

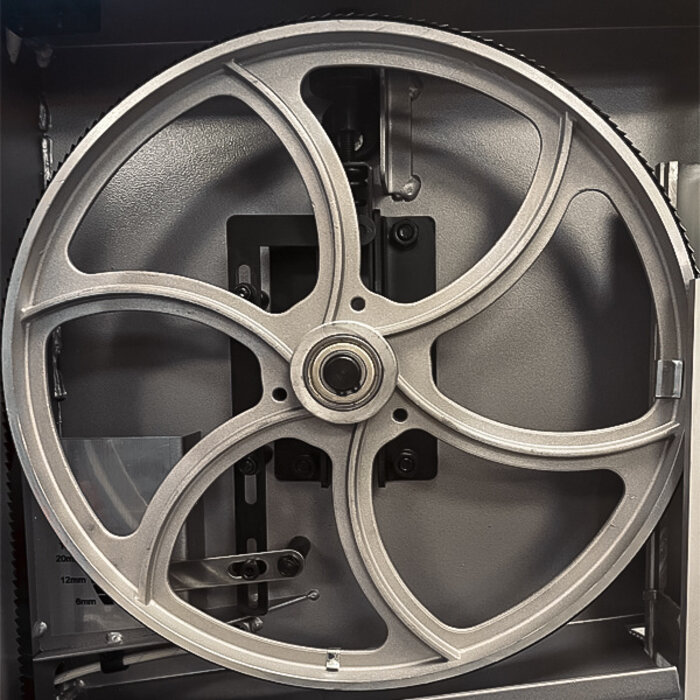

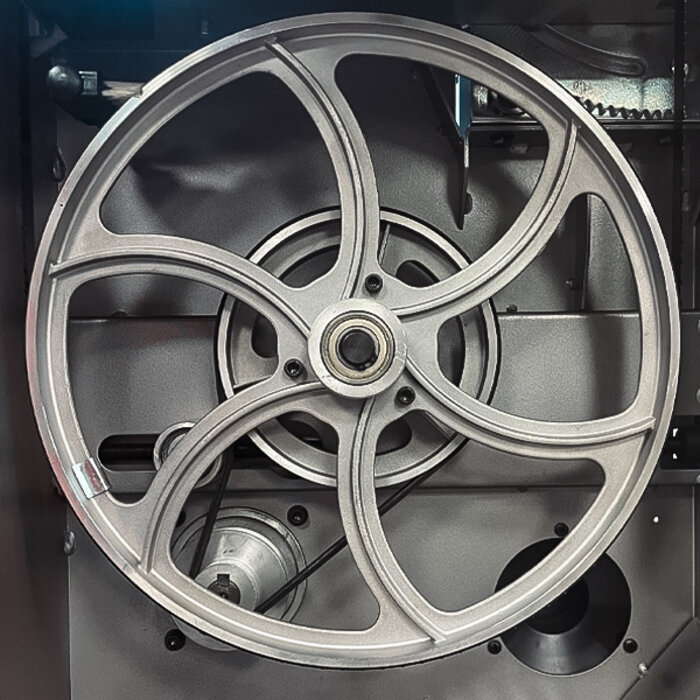

The power is provided by a low-noise induction motor that drives the saw via a belt. Using a pulley with two diameters, the correct speed can be set.

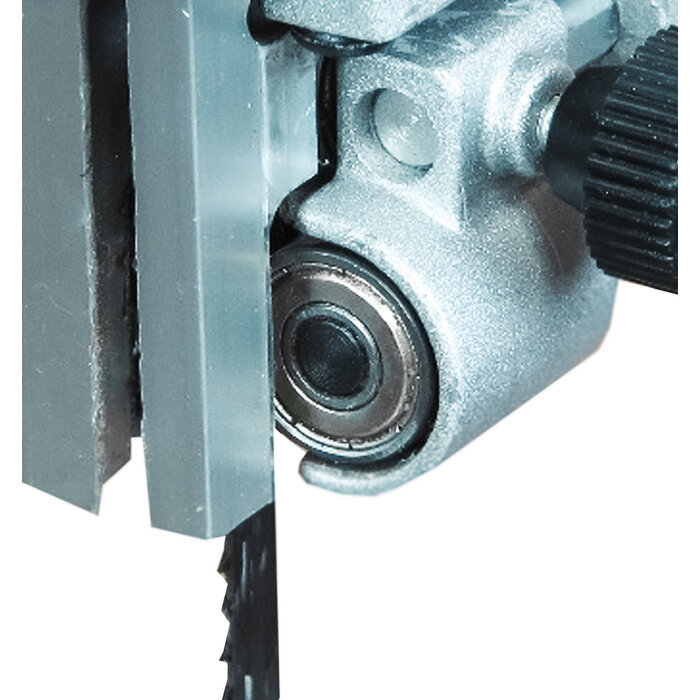

The most important thing about a band saw is guiding the saw blade to cut as straight and accurately as possible. The BS340 has three bearings in the guide. Two on each side of the blade to prevent the blade from rotating and one at the rear to allow the blade to run free from the guide. The same set-up has been chosen for under the table.

The table can be adjusted from 0 to 45 degrees and can be fixed at the ends. Every angle in between can be set by means of a protractor and locked. The guide piece can be fixed on both sides of the saw blade. The guide itself can be used in 2 ways. If thicker material is to be cut, the maximum height of the guide is 60 mm. For thinner materials, the thin side of the guide can be used for a better overview at work.

The machine is equipped with an LED lamp on a flexible arm. The two doors are equipped with safety switches that disconnect the power from the motor when the doors are opened for cleaning or replacing the saw blade

Features

• Huge 225 mm cutting capacity (height)
• 345 mm cutting width
• Equipped with a high-quality English saw blade
• Accurate cast steel work table, tiltable up to 45 degrees
• Quick-release on the guide block
• Low-noise induction motor
• The LED light in the workplace
• Integral dust drawer

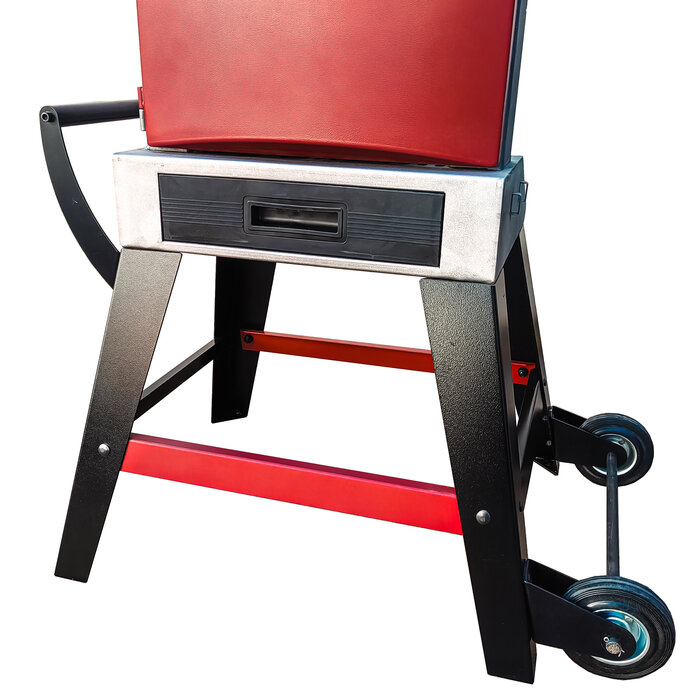

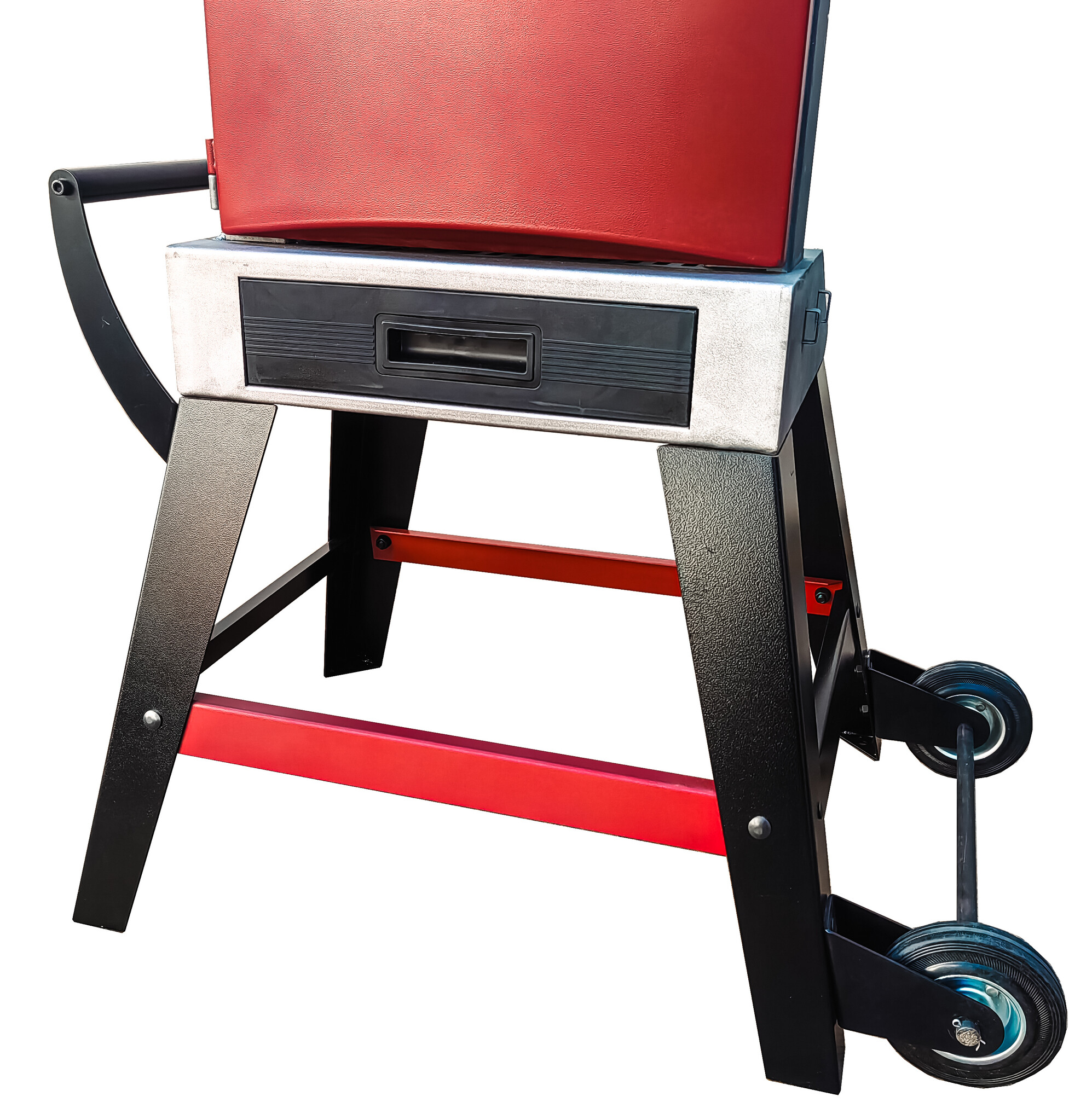

• Including floor stand
• Mainly for woodworking
• Mounted blade: 13 mm

Specifications

DUST EXTRACTION

It is recommended to always use an (external) vacuum cleaner with the band saw. The benefits of good dust extraction are primarily for your health and in a clean working environment as well as a clean workpiece that allows you to work more accurately and safely.

Also, order the Lumberjack BDE1200 or the wood chip cleaner & vacuum cleaner - UDE75 with your purchase

The dust hose connection contains three rings, which make it possible to use different sizes of hose: 50mm, 75mm & 100mm diameter. It is therefore possible to use any type of extraction. If no dust extraction is used, the machine is still equipped with a dust drawer as standard that can be easily emptied. Dust that enters the machine is collected here.

BANDSAW BLADES

If you also order an extra set of sawing ribbons with your order, you will never be without it and you can get started effortlessly.

We offer three types of band saw blades to Lumberjack

'BSB340-10' - 10mm
'BSB340-13' - 13mm
'BSB340-20' - 20 mm

you can order these under Accessories / Band saw blades.
